Description

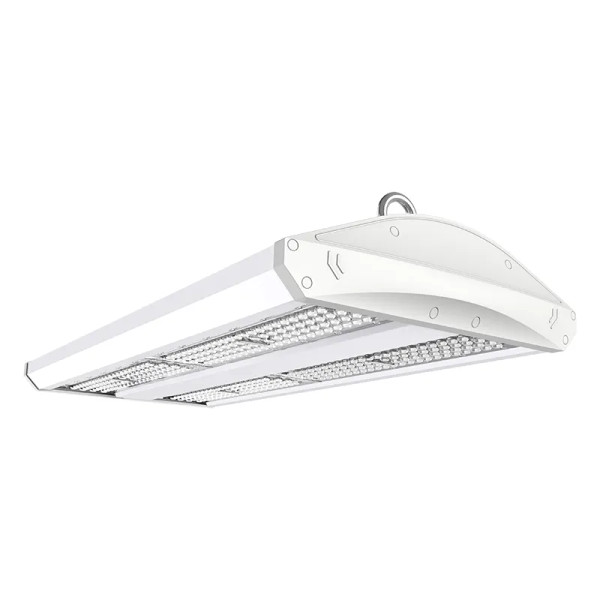

The Westgate Linear High Bay is a powerful and energy-efficient lighting solution designed for warehouses, gymnasiums, manufacturing facilities, and other large indoor spaces. Featuring selectable wattage and multi-CCT adjustability (3500K-5000K), this fixture allows for maximum flexibility to meet various lighting needs. Its high-lumen output ensures bright, even illumination, enhancing visibility and safety in industrial and commercial environments. With a durable construction, efficient LED technology, and easy installation, this linear high bay is a reliable choice for high-performance lighting applications.
Product Features
- Voltage: 120/277 VAC, 50/60Hz
- Wattage/Lumens: Either
- 80W/120W/160W = 12,000Lm/18,000Lm/24,000Lm
- 120W/160W/200W = 18,000Lm/24,000Lm/30,000Lm
- Color Temperature: 3-CCT: 3500K/4000K/5000K
- CRI: 80+
- Lifetime: 50,000 Hrs.
- 5-year warranty
- Suitable For Wet Locations
- Wide Beam Angle: 15°/25°/40°/60°/90°/120°/30X15°/4 9X21°/136X78°
- IP69 Rated: Ensures complete protection against dust and high-pressure water jets
- Suspended Mount: Two 3.3’ Steel Chains, Stainless Steel Ceiling Anchor Hooks, Hanging Rings, & Snap Spring Hooks are included
- 3FT, 18AWG SVT AC Power Cable
- Durable Aluminum Housing: Provides robust and corrosion resistant protection
- NSF Certified: Compliant with food safety standards for hygienic environments
- High Quality LED Chips to Provide High Efficiency, Heat Dissipation
- Polycarbonate Lens, High Flame Retardant Point
- Dimensions: Either
- 80W/120W/160W = 9.84” (H) x 17.64” (W) x 2.41” (D)
- 120W/160W/200W = 9.84” (H) x 21.91” (W) x 2.41” (D)
Specifications
| Voltage | 120/277V |
| Life | 50,000 Hrs. |
| CRI | 80+ |
| Brand | Westgate |
| Rating | Wet Locations |
| UPC | |
| SKU |
