Description

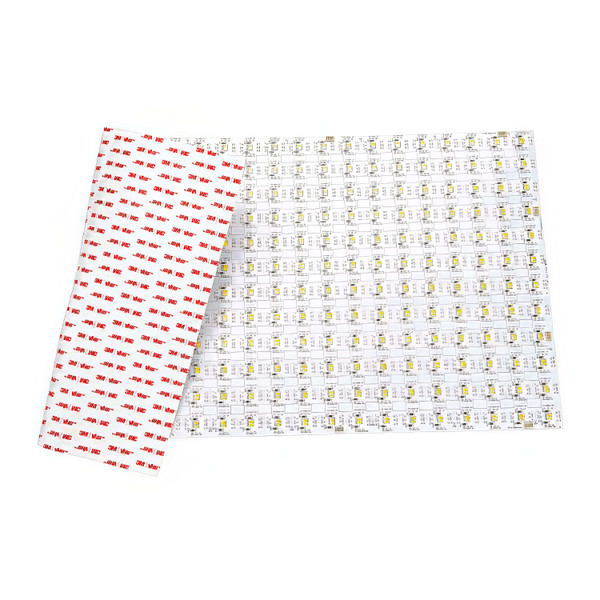

WAC Lighting's Pixels CCT Configurable LED Light Sheets offer a versatile and customizable lighting solution for various applications. These light sheets provide a flexible, low-profile design, making them perfect for backlighting, display cases, signage, or accent lighting. With adjustable color temperatures ranging from 2700K to 5000K (CCT), you can easily create the perfect ambiance for any space. The LED-P05 model consumes 5 watts per square foot, while the LED-P10 offers a higher output at 10 watts per square foot, providing options for both subtle and more intense illumination needs. These light sheets can be cut to size and configured to fit any project, delivering even, energy-efficient lighting with ease. Ideal for residential, retail, or commercial installations, WAC Lighting's Pixels CCT Configurable LED Light Sheets deliver quality, adaptability, and efficiency.
Product Features
- Voltage: 24V DC
- Wattage/Lumens:
- LED-P05-1224-2750: 500Lm/sqft & 10W Total or 5W/sqft
- LED-P10-1224-2750: 1000Lm/sqft & 20W Total or 10W/sqft
- Color Temperature: 2700K – 5000K
- CRI: 90+
- Standards: UL & CUL Listed for Dry & Damp Locations
- Rated Life: 50,000 Hrs.
- Select and choose desirable CCT with matching CCT selectable power supply
- With a lightweight, ultra-thin 1/8” profile
- Even illumination of translucent surfaces from as little as ½” behind
- May be field-cut vertically or horizontally, in unique shapes or around obstructions
- Powers easily by chaining with Gold plated connectors or form any square at soldering points provided
- Can be installed in either exposed or fully enclosed spaces
- Specially rated for installation in the storage area of a clothes closet
- Can be mounted on ceiling or wall in all orientations
- Includes: 2” Joiner Cable in every light sheet package (Connects between Pixels)
Specifications
| Brand | WAC |
| CRI | 90+ |
| Life | 50,000 Hrs. |
| Rating | Damp Locations |
| Voltage | 24V DC |
| UPC | |
| SKU |
